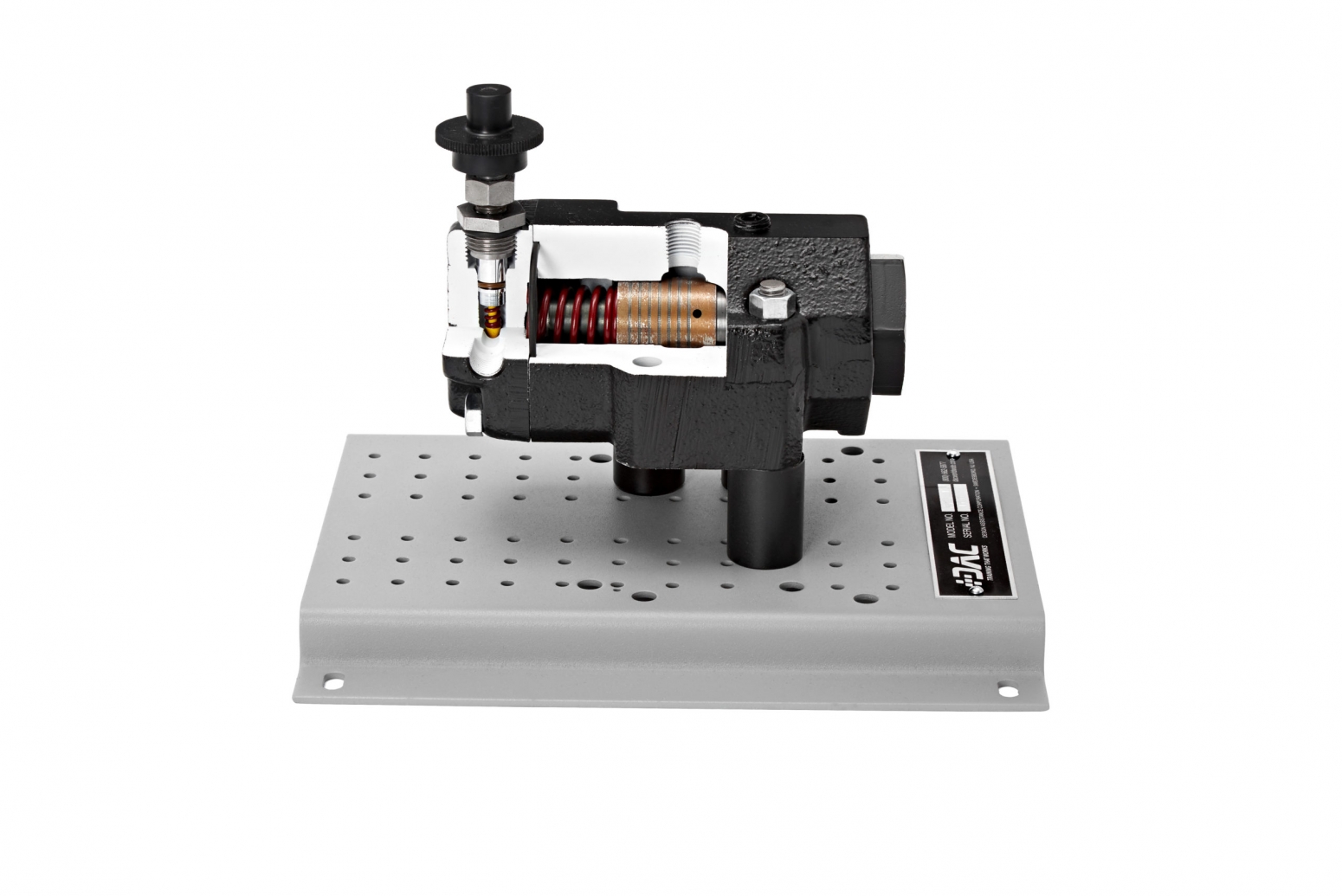

DAC Worldwide's Hydraulic Sequence Valve Cutaway (773-213) is a sectioned hydraulic sequence valve example with a two-stage balanced piston design, which incorporates a commonly-encountered valve type manufactured by an industry leader. These types of valves limit hydraulic system pressure by diverting a set amount of hydraulic fluid through a tank port. Common components include a pressure adjustment screw, poppet, heavy spring, vent connection, port connections, and a piston.

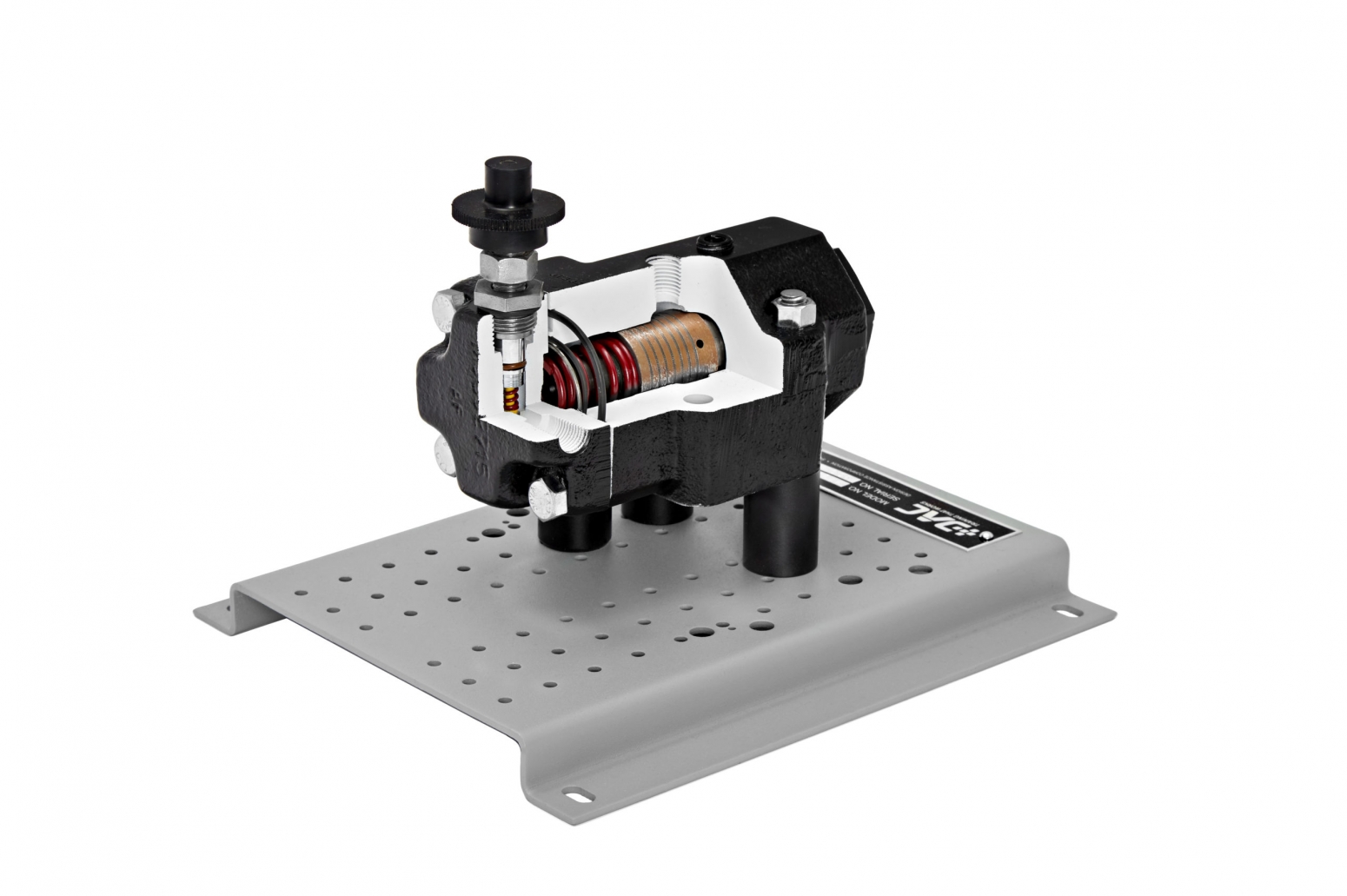

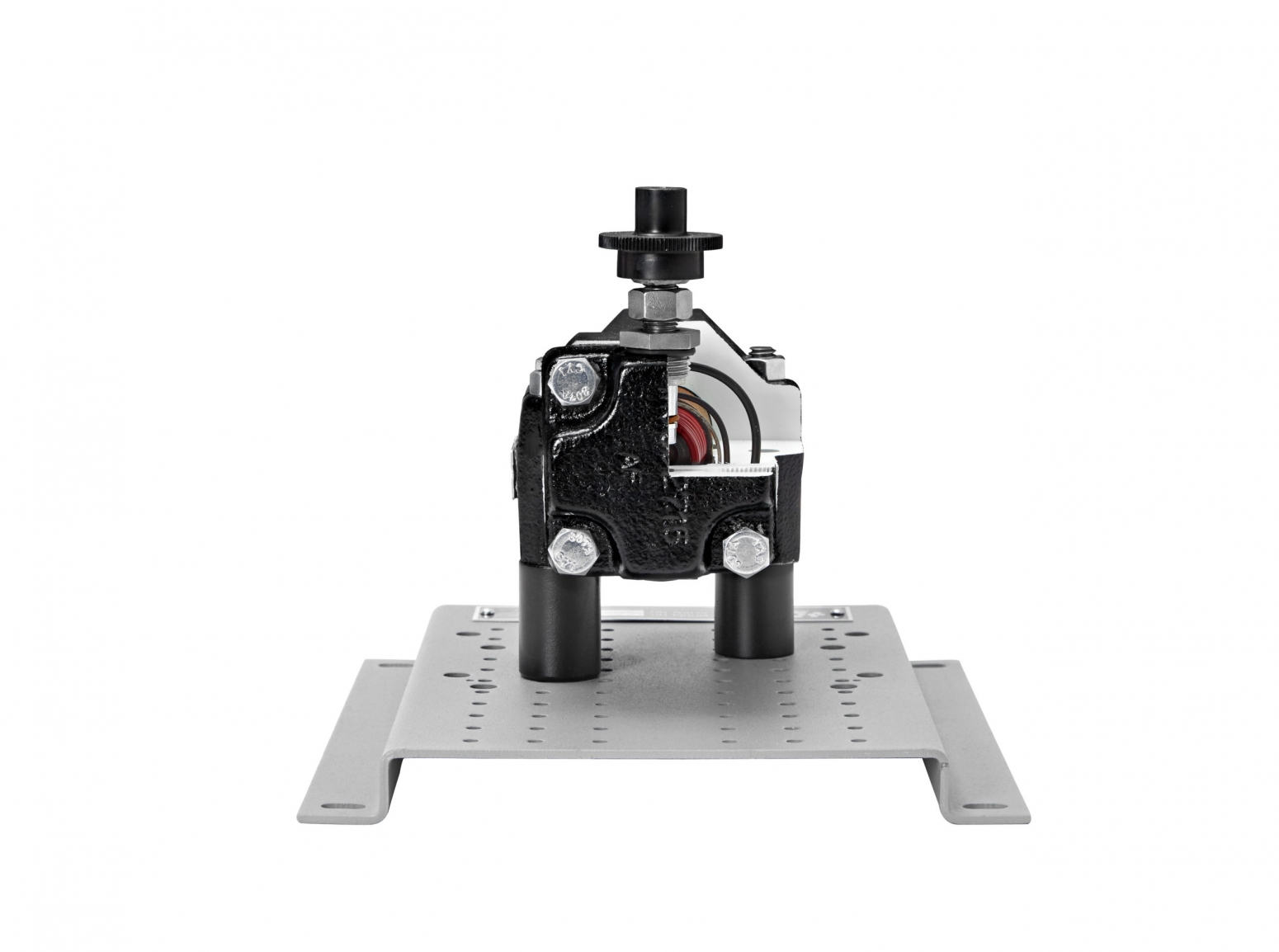

A specialized, angled formed-steel support assembly - and an on-board graphic of the component’s symbol - enhances the device’s usefulness to the instructor and encourages self-discovery by the student. Multiple cutaways unveil all internal components including pistons and inlet/outlet connections. The training aid also enhances classroom training in hydraulic system design, maintenance, troubleshooting, and preventive/predictive maintenance. The full-size, fully-detailed example gives learners a first-hand view into a component that is found in various applications worldwide.

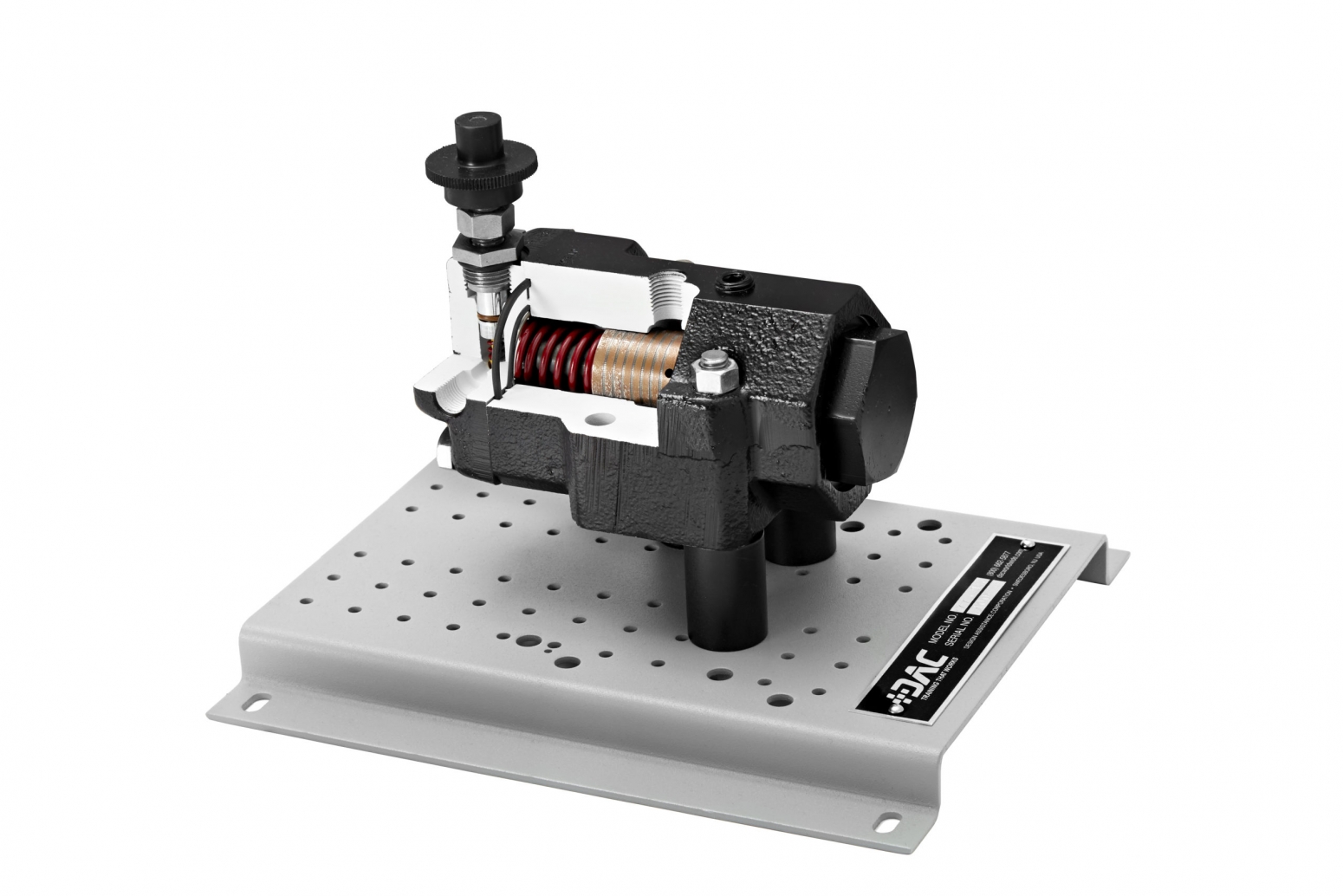

Thanks to carefully planned sectioning, the complete internal configuration of this hydraulic sequence control valve can be seen, while allowing for disassembly for more complete inspection and convenient classroom training in the operation, construction, and maintenance of these common pieces of hydraulic equipment. This professionally-crafted yet-economical component sample will enhance fluid power training activities in both the industrial and the educational setting.
Recommended 902V Mobile Display Stand
DAC Worldwide's Hydraulic Pressure Relief Valve Cutaway, Balanced Piston-Type (773-217) is a sectioned hydraulic, automatically triggered relief valve example with a two-stage balanced piston design, which incorporates a commonly-encountered valve type manufactured by an industry leader. T
DAC Worldwide’s Hydraulic Filter Cutaway (773-055) is a professionally-crafted sectioned example of a commonly-encountered sump-type hydraulic filter used in hydraulic systems to maintain oil quality and machine health. The training aid enhances classroom training in hydraulic system design, maintenance, troubleshooting, and preventive/predictive maintenance.
