I/P Transducer Cutaway

Industrial Current to Pressure Converter Training
Item Number:
273-840
I/P Transducer Cutaway
DAC Model: 273-840
DAC Worldwide Cutaway Trainers
DAC Model: 273-840

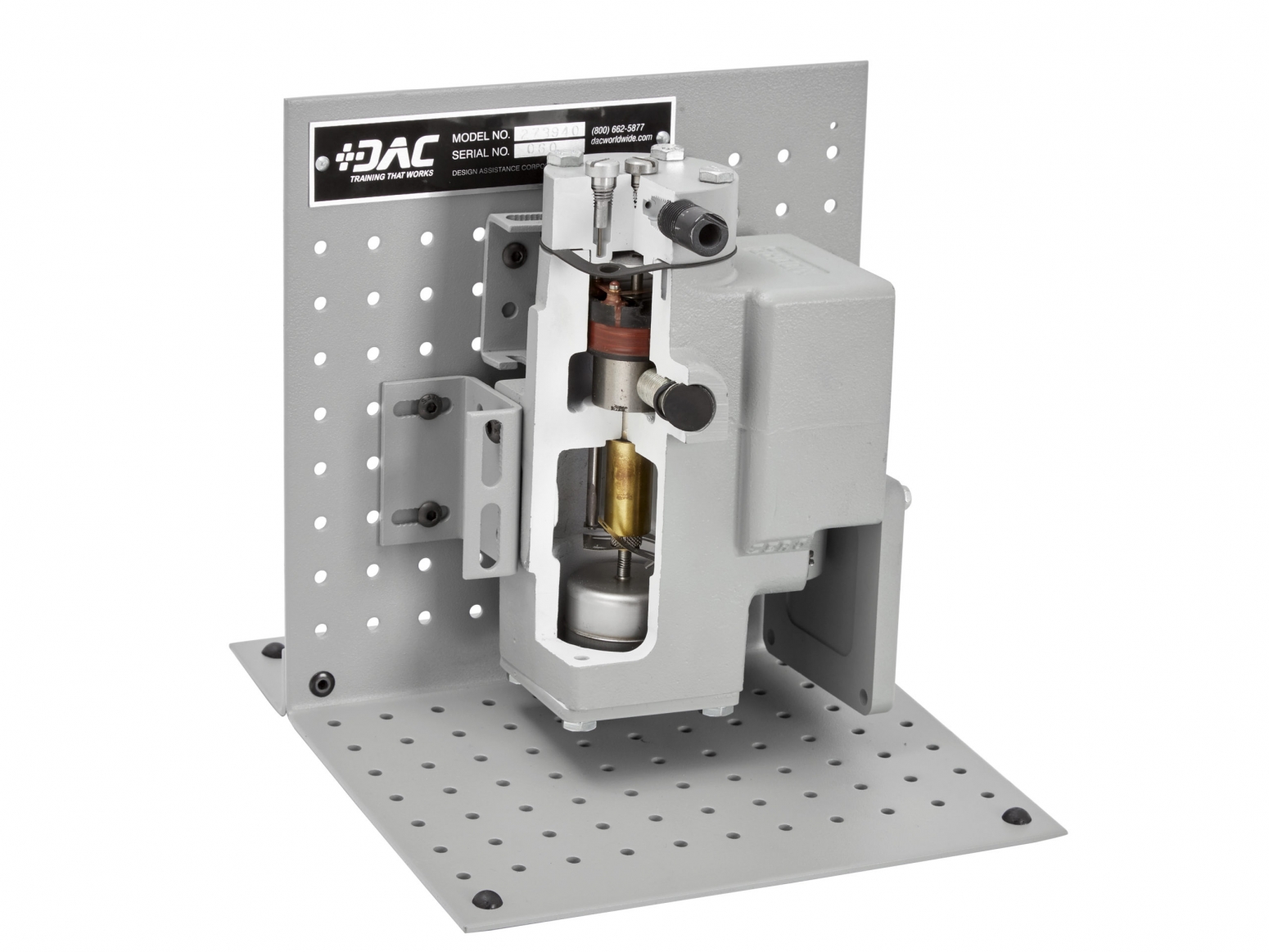

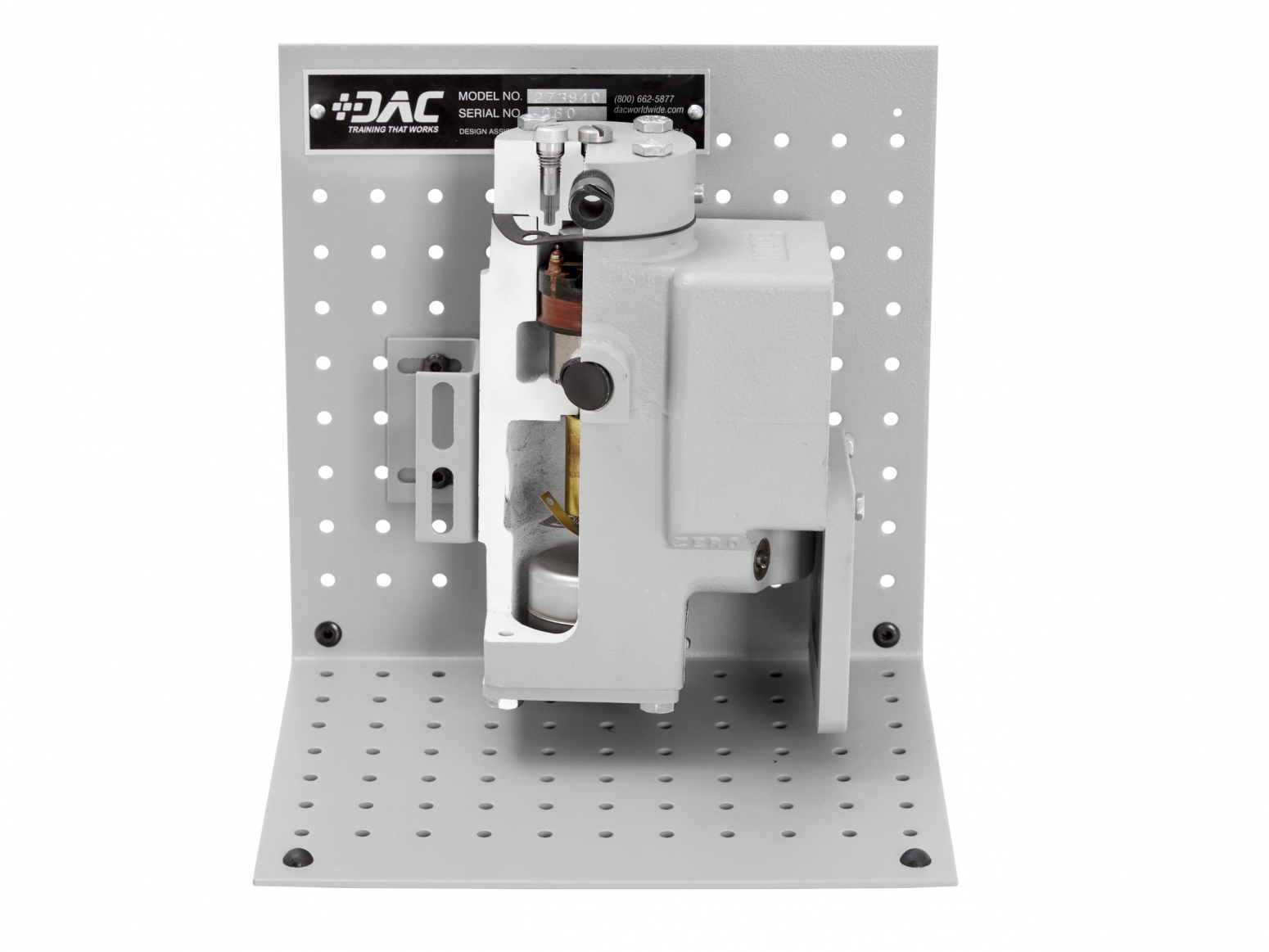

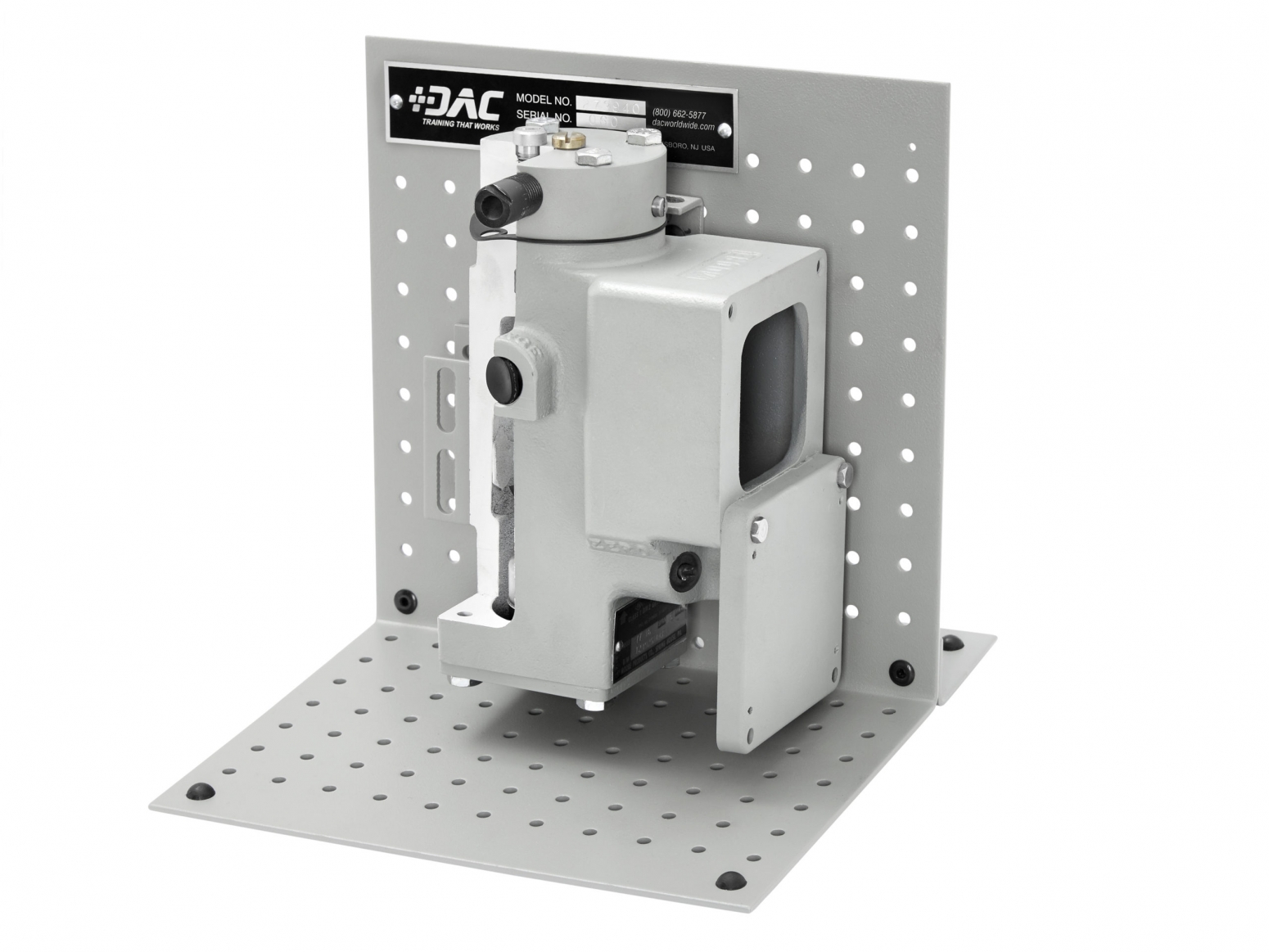

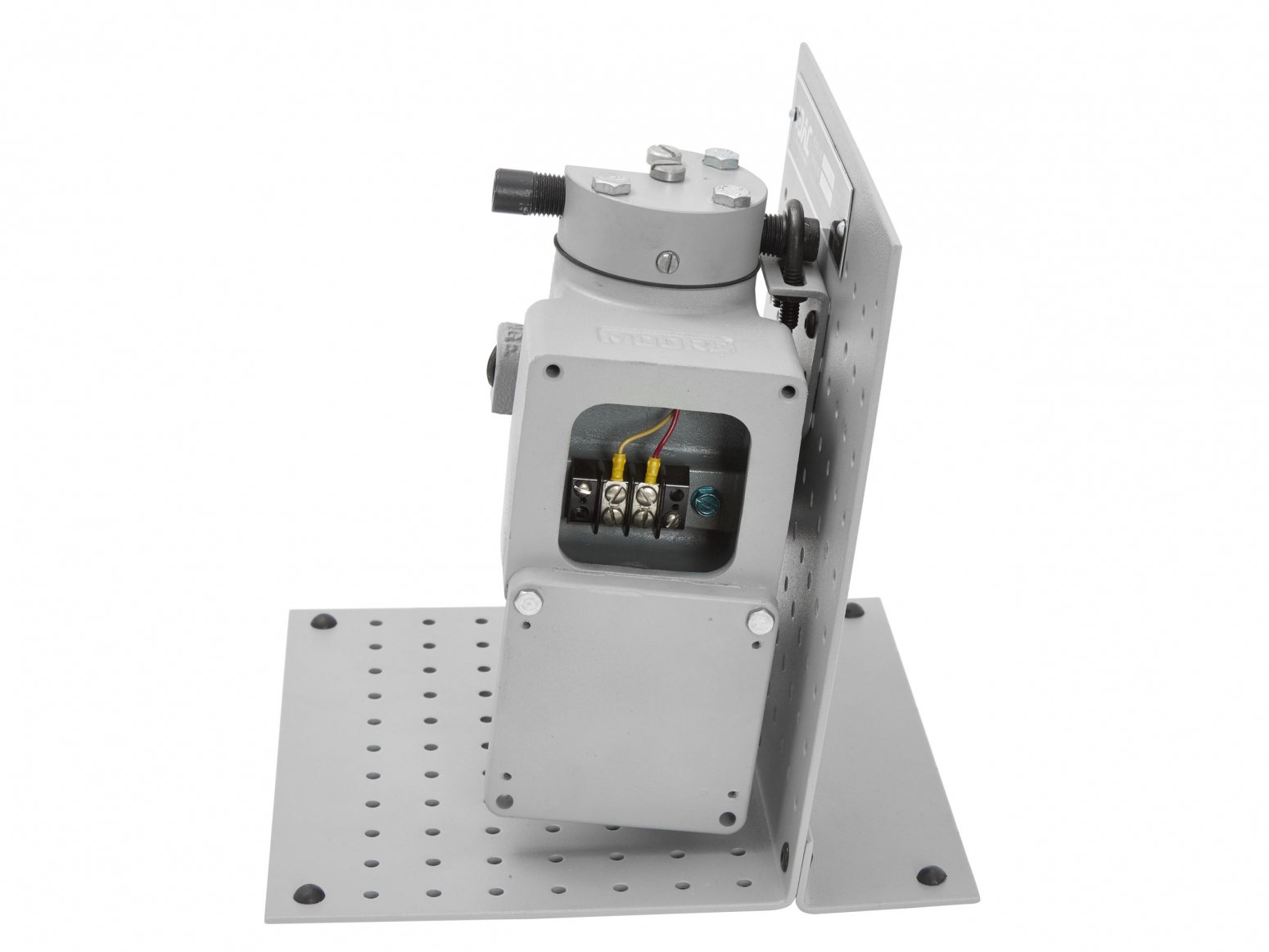

DAC Worldwide’s I/P Transducer Cutaway (273-840) is a detailed I/P converter cutaway that depicts a common current-to-pressure transducer used within industrial process control systems. This common piece of pneumatic control hardware is found in manufacturing facilities, petrochemical plants, refineries, and other similar industrial, commercial, and oil and gas applications.

The cutaway includes a formed-steel mounting assembly, allowing for stand-alone display, bench-top mounting, or mounting on specialized DAC Worldwide mounting benches and support structures.

Through careful sectioning, the complete internal configuration of the device can be seen while also allowing for disassembly for a complete inspection. All primary features have been retained.

Features

  • Sectioning of actual industrial component (common industrial component brands and models chosen for industrial relevance, including selections from Emerson/Fisher and Moore Products).
  • Restoration and cleaning of all primary component parts where necessary.
  • 14-gauge, formed-steel, powder-coated mounting stand with component attachment brackets and iron pipe mounting spools/nipples.
  • Provision for mounting on related DAC Worldwide bench, workstation, and storage products.
  • Packaging for shipment via parcel service or motor freight.

More Information

Product Dimensions

  • 9in. x 9in. x 10in.

Options

  • Recommended #902V Mobile Display Stand

Visit DAC Worldwide for more information.
