LOTO Trainer for High-Voltage Vehicles

Automotive Training for EV (ASE L3) and ADAS (ASE L4) Skills

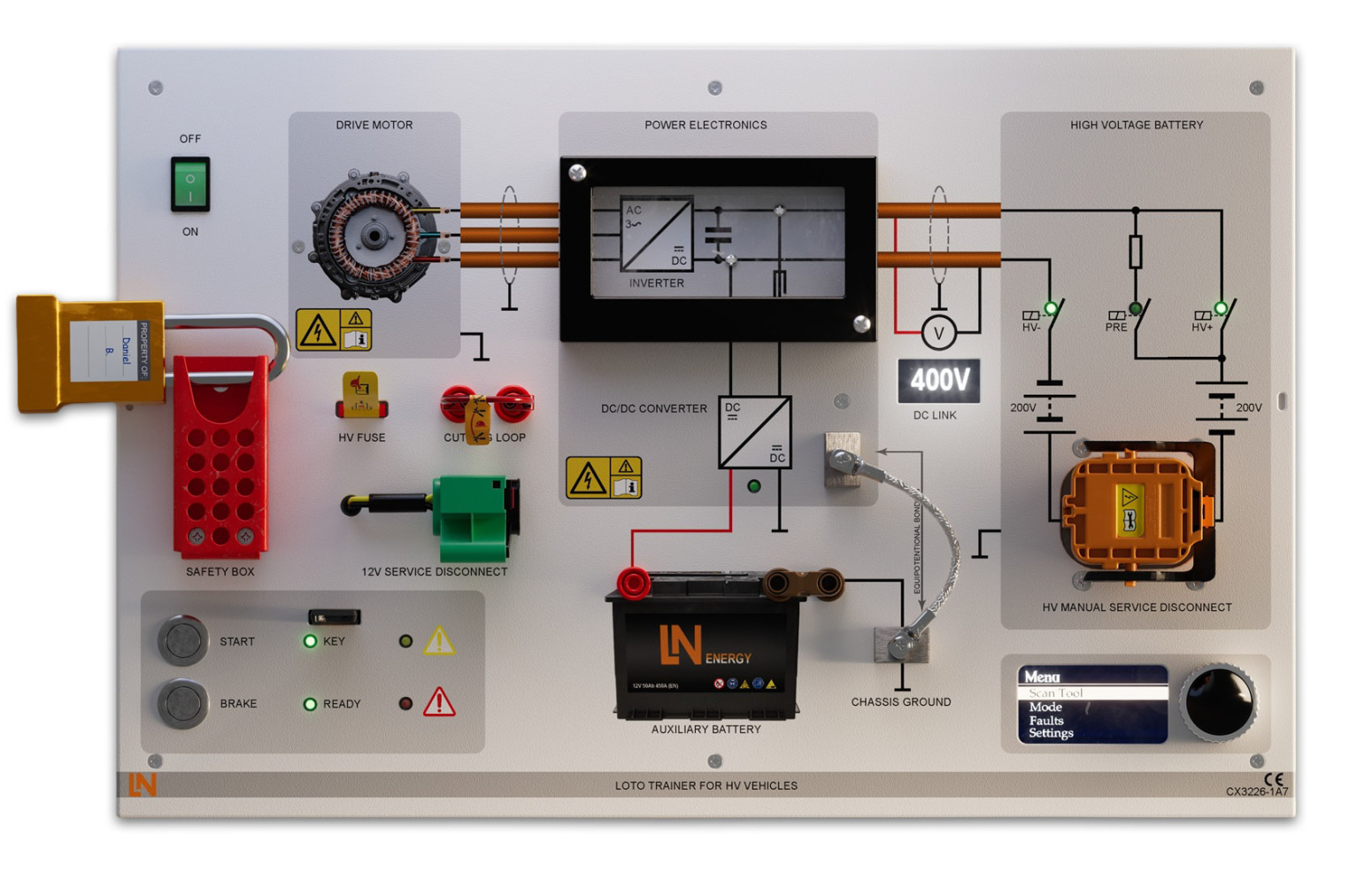

Front view of the Lucas-Nuelle CX3226-1A7 LOTO trainer and its EV components

Working safely on the high-voltage systems found in electric and hybrid vehicles requires more than theoretical knowledge. Technicians must identify the correct isolation method, verify that a system is de-energized, use appropriate test equipment, and follow a safe, repeatable procedure before starting service or diagnostic work.

The Lucas-Nuelle CX3226-1A7 LOTO Trainer for High-Voltage Vehicles gives students a controlled environment in which to practice these essential procedures before working on real battery-electric, plug-in hybrid, or hybrid-electric vehicles. Learners perform high-voltage isolation procedures, investigate realistic faults, interpret system data, and develop the systematic work practices needed for modern automotive service.

Practice high-voltage isolation, lockout/tagout, system verification, fault diagnosis, and safe recommissioning before working on a real electric or hybrid vehicle.

Hands-On High-Voltage Safety Training

High-voltage vehicle systems present hazards that make trial-and-error learning on an actual vehicle unacceptable. The Lucas-Nuelle LOTO Trainer allows students to learn procedures, investigate faults, make decisions, and repeat exercises in a controlled training environment.

The system supports multiple vehicle-isolation techniques, including manual service disconnects, 12-volt service disconnection, cutting-loop procedures, high-voltage fuse removal, smart-key storage, scan-tool shutdown, and Live-Dead-Live measurements. Students learn to select an appropriate method based on vehicle condition and system status.

Build Practical LOTO and Diagnostic Skills

Recognize electric and hybrid vehicle high-voltage hazards
Identify high-voltage components and warning indicators
Perform multiple vehicle-isolation methods
Apply lockout/tagout devices before service work
Prevent unintended re-energization
Perform Live-Dead-Live measurements
Verify system shutdown and residual voltage
Confirm contactor and high-voltage interlock status
Verify equipotential bonding integrity
Retrieve and interpret diagnostic trouble codes
Investigate interlock, bonding, and insulation faults
Determine whether a vehicle is safe to service
Recognize conditions that exceed a technician’s authorization level
Safely reinitialize and recommission the vehicle after service

Realistic Workshop Faults and Applied Scenarios

The included fault simulator allows instructors to introduce realistic system conditions that students must identify, evaluate, and diagnose. Learners use the integrated scan-tool simulation, diagnostic trouble codes, live data, and electrical measurements to determine the condition of the system.

Applied scenarios include incorrect isolation sequences, failed shutdown validation, high-voltage interlock faults, equipotential bonding faults, residual voltage, active insulation faults, unknown contactor status, collision-damaged vehicles, and unsafe working conditions.

Instead of simply being told that a fault exists, students must apply measurement techniques and a logical troubleshooting process to identify the problem and decide whether isolation or service work can proceed safely.

Integrated Scan-Tool Simulation

An integrated user interface provides scan-tool simulation, diagnostic trouble codes, live system data, fault insertion, guided learning modes, and assessment activities. Students can practice interpreting safety information and using scan-tool functions as part of the vehicle-isolation process.

Practice with Workshop Test Equipment

Students can perform training procedures using the same types of test equipment used when servicing real vehicles. Applicable exercises include insulation testing, voltage measurement, and low-resistance equipotential bonding tests.

A suitable insulation and voltage tester or megohmmeter and a four-wire Kelvin milliohmmeter may be required as separate devices, depending on the training configuration.

Prepare Students Before They Work on Real EVs

The LOTO Trainer provides a bridge between classroom instruction and hands-on work with electric and hybrid vehicles. Students can repeatedly practice identifying the system, selecting an isolation method, securing it against re-energization, verifying its electrical condition, investigating faults, and safely recommissioning it.

Authentic automotive components and procedures create a safe, repeatable high-voltage work environment while helping students develop skills that transfer to the workshop.
