Pneumatic Level Controller Assembly Cutaway

Proven Oil & Gas Training
Item Number:
295-713
DAC Worldwide Oil & Gas Training
DAC Worldwide Cutaways
Oil & Gas Cutaway Trainers
Proven Oil & Gas Training

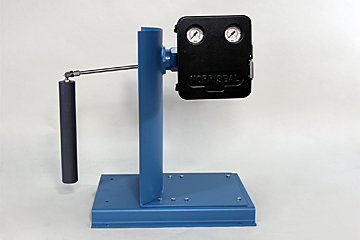

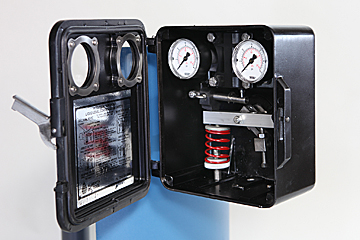

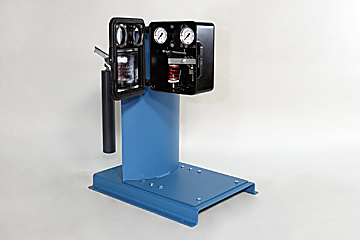

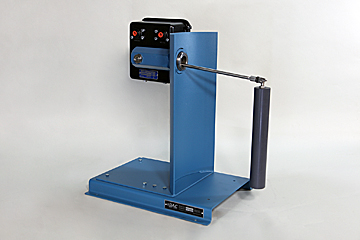

DAC Worldwide’s Pneumatic Level Controller Assembly Cutaway (295-713) is a sectioned, highlighted float-operated pneumatic level controller assembly that allows for realistic demonstration and training related to this common level control device used in oil and gas production operations.

Frequently encountered and used on horizontal separators, scrubbers, and other common oilfield equipment, this fundamental piece of dependable hardware is critical to oilfield production operations.

Common models made by well-known manufacturers of oilfield equipment are used for industrial training relevance. A representative tank wall is provided, allowing for realistic installation and understanding of the function of primary component parts and principles of operation.

Features & Specifications

  • Sectioning of actual industrial hardware (common valve makes and models chosen for industrial training relevance).
  • Cleaning, priming, and painting using a high-durability urethane coating.
  • Replacement plated hardware where required.
  • All refurbished and intact controller assembly, allowing inspection and manipulation of the entire operating mechanism.
  • Welded, formed-steel mounting baseplate with provision for tabletop mounting or mounting on related DAC Worldwide workstation and storage products.
  • Formed and welded 1/8" steel.
  • Manufacturer’s maintenance manual.
  • Crating for shipment via motor freight.
  • Product Dimensions: 13.5" L x 22" W x 23" H

Options

  • Recommended #902V Mobile Display Stand
  • #902F - Electromechanical Workstation
  • #903F - Electromechanical Workstation, Extended
